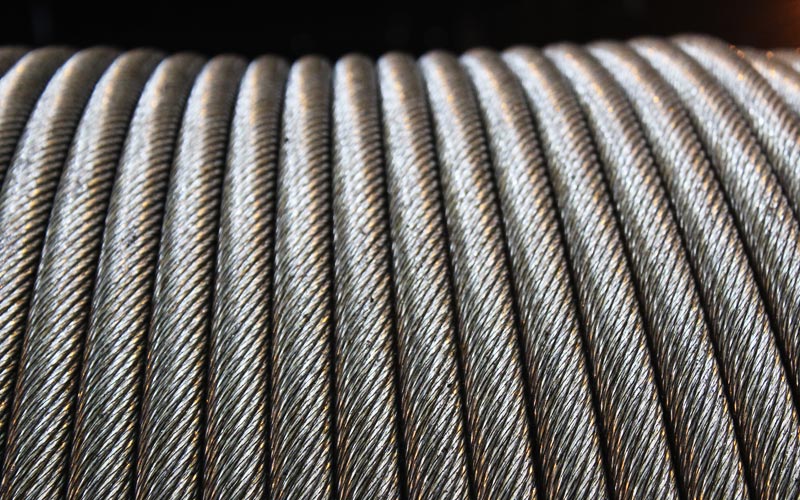

35X7 Galvanized Rotation Resistant Wire Rope, Compacted
2160 Grade Compacted & Rotation Resistant Galvanized Rotation Resistant Wire Rope
Features
High performance rotation-resistant wire rope suitable for all hoist applications.
Available both with and without plastic coated steel core.
35WXK7 without plastic is recommended for high lifting operations
Suitable for single-part and multi-part reeving
Recommended for multi-layer coiling
Can be used both with and without swivel
The best rope for high lifting height applications.
It is constructed with compacted outer and inner strands.
35 X 7 has an extremely high breaking strength and a high resistance to drum crushing.
The rope is completely lubricated and made of galvanized wires.
Other wire rope sizes are available upon request.
This drawn galvanized wire rope is designed for superior strength and corrosion resistance. Most galvanized wire is first drawn as a bright wire to a predetermined shape and then coated, which slightly increases the diameter while slightly decreasing its strength. The zinc coating helps to protect the wire from weathering and wear, extending the longevity of the rope.
The rope is then compacted to flatten the surface area and increase contact between strands, which helps to decrease friction that can wear down the wire strands and internal core.
This rotation resistant wire rope is made of 35 strands of seven wires each with an independent wire rope core (IWRC), making it an optimal rope for:
Offshore crane rope
Deck crane rope
Pillar crane rope
Whip hoist rope
Main hoist rope
Crane rope
35X7 Construction family includes 32X7, 34X7 and 37X7.xc
Product Types Available
Bright or galvanized
Regular lay or Lang′s lay (Lang′s lay is standard)
Option: Plastic coated steel core
Technical parameters
|
Diameter |
Approx. weight (kg/100m) |
Tensile strength (MPa) |
||
|
(mm) |
1770 |
1960 |
2160 |
|
|
|
Minimum breaking load (kN) |
|||
|
8 |
33 |
51 |
56 |
62 |
|
9 |
41 |
65 |
71 |
79 |
|
10 |
51 |
80 |
88 |
97 |
|
11 |
62 |
96 |
107 |
118 |
|
12 |
73 |
115 |
127 |
140 |
|
13 |
86 |
135 |
149 |
164 |
|
14 |
100 |
156 |
173 |
191 |
|
15 |
115 |
179 |
198 |
219 |
|
16 |
131 |
204 |
226 |
249 |
|
17 |
147 |
230 |
255 |
281 |
|
18 |
165 |
258 |
286 |
315 |
|
19 |
184 |
288 |
318 |
351 |
|
20 |
204 |
319 |
353 |
389 |
|
21 |
225 |
351 |
389 |
429 |
|
22 |
247 |
386 |
427 |
470 |
|
23 |
270 |
421 |
467 |
514 |
|
24 |
294 |
459 |
508 |
560 |
|
25 |
319 |
498 |
551 |
608 |
|
26 |
345 |
538 |
596 |
657 |
|
27 |
372 |
581 |
643 |
709 |
|
28 |
400 |
624 |
691 |
762 |
|
29 |
429 |
670 |
742 |
817 |
|
30 |
459 |
717 |
794 |
875 |
|
31 |
490 |
765 |
848 |
934 |
|
32 |
522 |
816 |
903 |
995 |
|
35 |
625 |
976 |
1080 |
1191 |
|
36 |
661 |
1032 |
1143 |
1260 |
|
39 |
776 |
1211 |
1342 |
1478 |
|
40 |
816 |
1274 |
1411 |
1555 |
