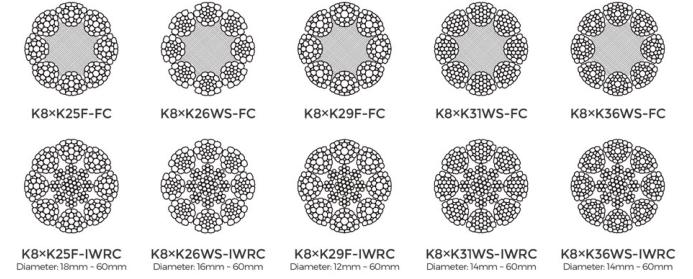

K8XK19S & K8XK36WS series

Advantages

• Special wire ropes for your application;
• Proven strand design and versatile adaptability;
• Long service life;
• Fiber core, constant quality;
• Low elastic and permanent elongation·Low maintenance costs;
• 100 % rope quality, high quality assurance;
• Fair cost-benefit ratio;
• Highly qualified and experienced personnel;
• Competent advice；
• Reliable service;
• Worldwide sales network.

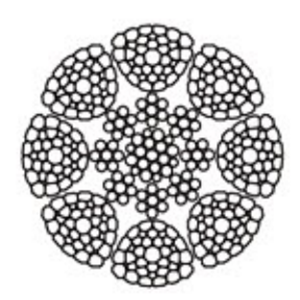

This rope provides higher strength than standard ropes of same diameter while offering greater resistance to drum crushing, scrubbing and similar wear. We utilize a rotary swaging process to produce a compacted crosssection with minium voids and greater surface area on outer wires.

Product Description : Swaged wire rope is manufactured by compacting standard wire rope until the diameter is reduced. The result is a wire rope with greater strength in comparison to standard wire ropes of the same diameter. This denser product can withstand more abuse than standard wire ropes making it popular in the logging industry.
Advantage of Swaged Rope
1) Cutting force is higher compared to the same rope diameter, have a long life.
2) Since the outer shape of the rope is rectangular and extend the life Inclusive of the drum reduces the frictional force.
