Floating Cranes

  • Floating Cranes Wire Rope
Floating Cranes Wire Rope

Floating Cranes Wire Rope

  • Tensile strength:1570-2160mpa
  • Diameter:3-263mm
  • Certificate:ISO9001, CCS, ABS, DNV, CE, BV, SGS, ASTM.
  • Brand: Aulone
  • Product description: Floating cranes are heavy lift vessels that are specifically designed for handling loads in ports, offshore, and shipyards. For more complex lifts, a simple Sheerleg arrangement or luffing crane may b
  • INQUIRY
Floating cranes

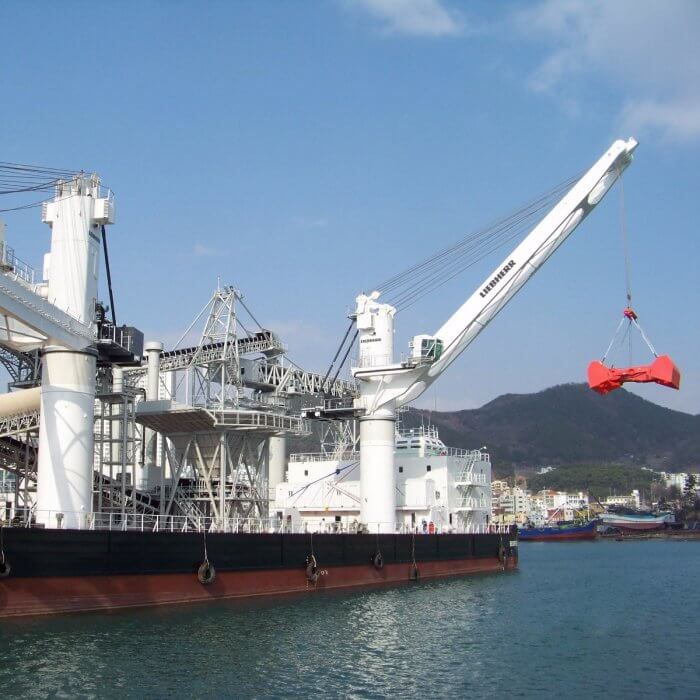

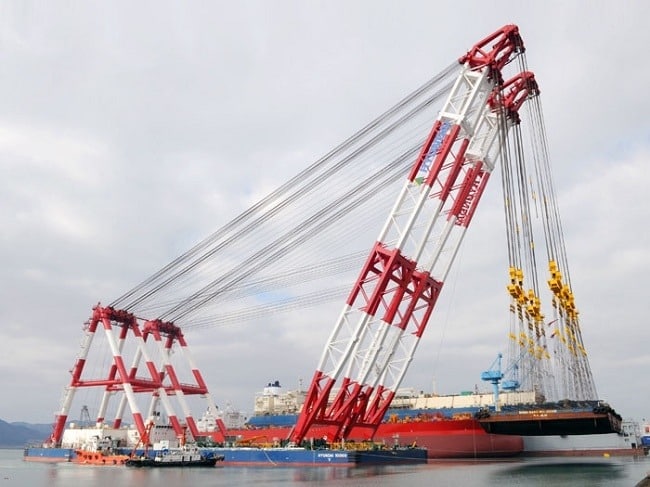

Floating cranes are heavy lift vessels that are specifically designed for handling loads in ports, offshore, and shipyards. For more complex lifts, a simple Sheerleg arrangement or luffing crane may be used.

Floating cranes wire ropes
Floating cranes face new challenges as they lift heavier loads (heavy lift applications). Day in and day out. Whether heavy lift cranes are used in harbors or for offshore projects, ensuring safety during lifting operations is always a top priority for crane operators. Aulone high performance steel wire ropes with plastic-impregnated steel cores help customers achieve maximum efficiency and safety over the ropes' entire lifetime. Our ropes are successfully used to lift heavy loads aboard ships all over the world. These structures are available in galvanized or bright versions, depending on the needs of our customers.

Aulone provides rotation resistant ropes as well as special 6- and 8-strand steel wire ropes that are successfully used on all common heavy lift cranes. These hoist ropes have an extremely high breaking strength as well as excellent wear resistance. This is due to the highly compacted outer strands. The compaction technology developed for this purpose allows us to achieve constant diameters with only minor variations along the length of a manufactured wire rope. This makes operating your cranes easier and safer, while also lowering the total cost of ownership.

35WXEPK7
Rotation resistant wire rope with very high breaking strength
Excellent fatigue properties
Extremely high resistance to flattening and wear.
Particularly suited to multiple layer spooling. A plastic layer between the inner and outer strands protects against inner wear and corrosion of the core.
Rope construction: Rotationally resistant wire rope with compacted inner and outer strands, with a plastic layer between the inner and outer strands.
Marking: according to standard EN 12385-4

40xK7
Rotation resistant, flexible hoist rope made out of compacted outer strands and a compacted steel core
Fully lubricated
Extremely high breaking load
Resistance against drum crushing
Has a core in special design
Hoist rope and boom hoist rope – non rotation resistant

8XK26WS-EPIWRC
Eight-strand rope made out of compacted outer strands
Fully lubricated
Has a plastic layer between the steel core and the outer strands
Has a high breaking load and a good resistance against drum crushing
May not be used with a swivel

10XK26WS-EPIWRC
Ten-strand rope made out of compacted outer strands
Fully lubricated
Has a plastic layer between the steel core and the outer strands, giving the rope a high structural stability, avoiding internal rope destruction and protecting the core against the corrosive environment
High breaking load
Resistance against drum crushing
May not be used with a swivel
Boom Pendants – Non Rotation Resistant

6XK36WS-EPIWRC
Improved bending fatigue performance
Better retention of internal lubrication

10XK26WS
Ten-strand rope in parallel lay construction made out of compacted strands
Fully lubricated
Flexible
Extremely high breaking load
