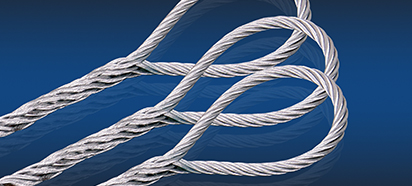

Steel Wire Rope Sling For Lifting

Steel Cable Splicing Sling

Product description:
INQUIRY

Features

1.High performance cable sling is manufactured through special splicing process by Aulone independently researched and produced professional equipment. Size available: 100mm to 500mm.
2.Both eye parts are specially processed to extend its service life.
3.The minimum bend radius of the lifting point area should not be less than 1.5d.
4.In the form, steel cable sling was spliced by the wire rope with the characters of class a or ab, steel core, nominal tensile strength 1770MPa. Depending on the different working place, we should chose the rope with different surface treated, including galvanized wire rope with lubrication, galvanized wire rope without lubrication and un-galvanized, total three choices.
5.When using much higher tensile strength wire rope to splice the grommet sling, the rope diameter should be smaller than the normal tension strength rope.

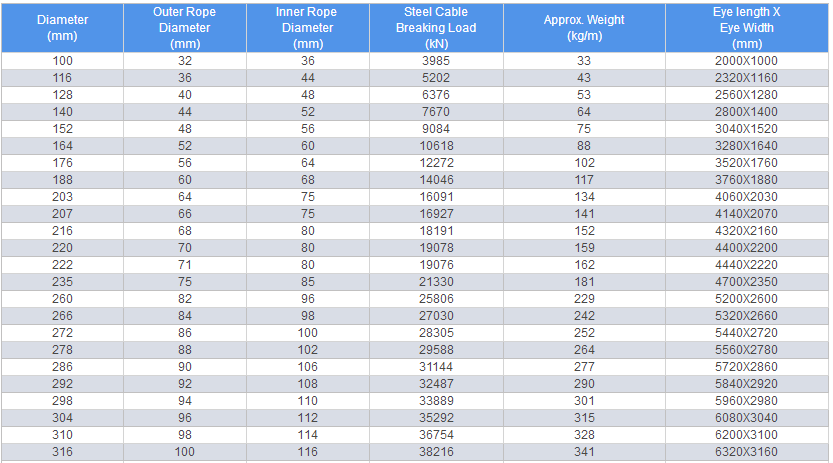

Technical parameters
