Crawler Crane Wire Rope

HOIST WIRE ROPES FOR CRAWLER CRANES
Lifting heights of more than 200m and loads up to 4000t ask for a safe and reliable rotation resistant wire rope. The ropes manufactured by Aulone fulfil that request and provide ample resistance against drum crushing caused by multi-layer spooling at the same time.

Our wire ropes are features by:
Highest rotation resistance, can be used with a swivel
Compacted or even swaged rope constructions show a perfect spooling behavior on the drum.
Coatings: Ungalvanized, Galvanized A,AB,B plastic coated core.

Crawler cranes are used for lifting heavy loads at high working heights and radii. Some tasks like the erection of windmills require extremely reliable high performance steel wire ropes to safely and efficiently lift and lower loads - with great precision and maximum performance.Heavy weights can be lifted with crawler cranes at great operating heights and radii. In order to hoist and lower loads safely, effectively, and with maximum performance, some jobs, like the construction of wind turbines, call for steel wire ropes of the highest quality and reliability.

Aulone provides high performance steel wire ropes that exhibit good spooling behavior in multilayer spooling and are extremely resistant to rotation and wear for hoist and auxiliary hoist rope applications on crawler cranes.

Cranes successfully utilize the high performance steel wire ropes from Aulone that are compacted, rotation-resistant, and have an incredibly high load capacity. Tested rope end terminations, such as button sockets for commercially available pouch sockets, complete the steel wire rope. The quality of the ropes is attested to by meticulous tests and acceptance certificates, which are routine parts of our supply program.

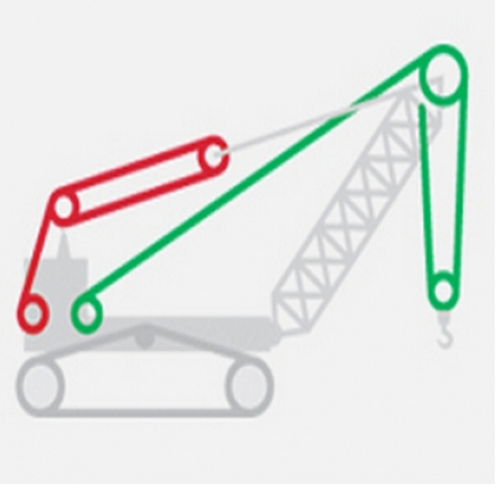

BOOM HOIST WIRE ROPES FOR CRAWLER CRANES
Strong wire rope is required, particularly for enormous crawler cranes, to lift and adjust the heavy boom. Aulone suggests using rope constructions that can withstand the intense lateral pressure that the boom experiences right before it lifts off the ground. To prevent crushing and ovalization on the drum, the ropes must have a high filling factor and a surface that is as smooth and rounded as possible.

When using crawler cranes to safely lift heavy loads at extremely high working heights and radii, Aulone boom hoist wire ropes are a necessity. The high performance steel wire ropes that are non-rotation resistant ensure that the main boom and the auxiliary boom can be positioned precisely and smoothly.

When crawler crane booms need to be adjusted, several ropes with the highest break loads, the best multilayer spooling properties, and the highest wear resistance are sometimes needed.

For crawler cranes, Aulone offers compacted 8-strand and 6-strand boom hoist ropes with highest breaking forces and extreme dimensional stability under lateral pressure, which have been successfully used for many years on cranes. Aulone steel wire rope for crawler cranes is made perfect only by suitable customization through tested rope end terminations such as button sockets for commercially available pouch sockets. As a matter of course, tests and acceptance certificates are part of our service package.

Aulone's full range of cranes and industrial wire ropes provide high-performance products for demanding applications. The characteristics of these products are reflected in the high level of fatigue performance, diameter stability and extrusion resistance, as well as the widely applicable working temperature brought by lubricating grease Range and high corrosion resistance. These advantages can increase the service life of the wire rope, reduce the number of wire rope replacements and downtime for customers, thereby saving a lot of costs.

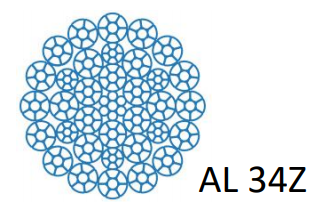

AL 34Z is a high-performance low-rotation compacted strand steel wire rope, which combines different multi-strand steel wire rope designs and has excellent anti-rotation performance in high-altitude operations.
Excellent anti-rotation performance
High efficiency due to its flexibility
Suitable for single magnification or multiple magnification
Suitable for single magnification use without guidance

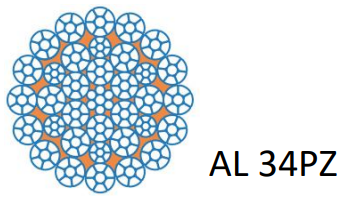

AL34 PZ is a high-performance low-rotation compacted strand steel wire rope, which combines different multi-strand steel wire rope designs and has excellent anti-rotation performance in high-altitude operations. It adds a layer of plastic (PI) between the inside and outside of the wire rope to enhance fatigue life.

Stable wire rope structure

Higher bending fatigue performance

AL6 PZ is a high-performance single-layer compacted steel wire rope with a plastic layer (PI) between the 6 outer strands and the steel wire rope core.

Improve bending fatigue performance

Better retain internal lubrication

AL8 PZ is a high-performance single-layer compacted & plastic insert steel wire rope

Improved bending fatigue performance

Stable wire rope structure

Diameter stability, in line with multi-layer winding requirements
