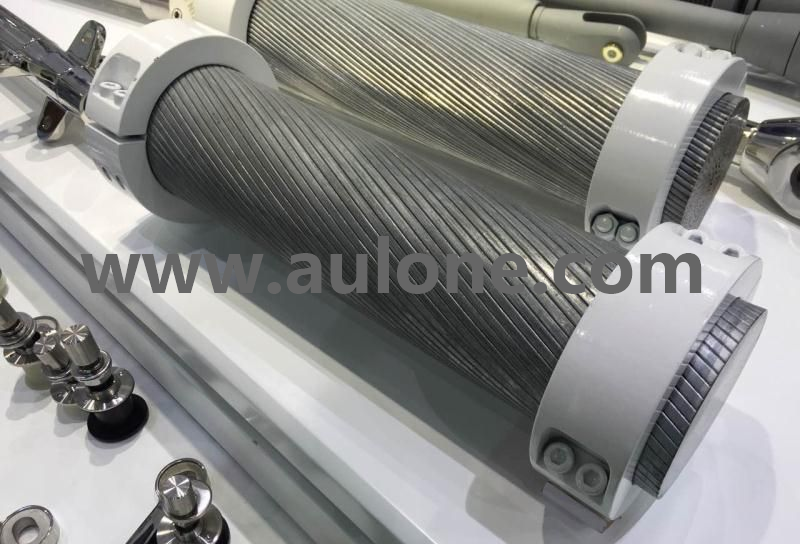

Full locked coil ropes

Full Locked Coil Strands are formed of shaped high-strength wires which are coated withg alvanized or Galfan( Zn95Al50) and helically spun around a core. The interlocking, Z-shaped wires create a better barrier against external, corrosive substances and decrease internal corrosion while providing this product a desired aesthetic and modern appearance.

Elastic Modulus: 160 kN/mm2 10 kN/mm2
Diameter tolerance: 0% / +3%
Coating of cable: conventional or HDPE Sheathing; Tensocoat
Standard: EN 12385-10

Superior wear resistance
Able to with stand high compression forces
High breaking load-to-diameter ratio
Superior torque balance and high strength
Very low elongation
Elasticity with a high modulus of elasticity
Rotation resistance ensures appropriateness for use in very deep hoisting shafts.
Z-shaped wires provide a compact cross-section.
Superior fatigue resistance
Excellent corrosion resistance
Galfan
Galvanized
Corrosion-Resistant blocking bgents
The diameter range is 20-200 mm.

Application
Bridge cables
Catenary cables
Stay cables
Suspender cables
Stadiums
Roof supported structures
Catwalk suspensions systems
Aerial tramways
Pedestrian and footbridges
