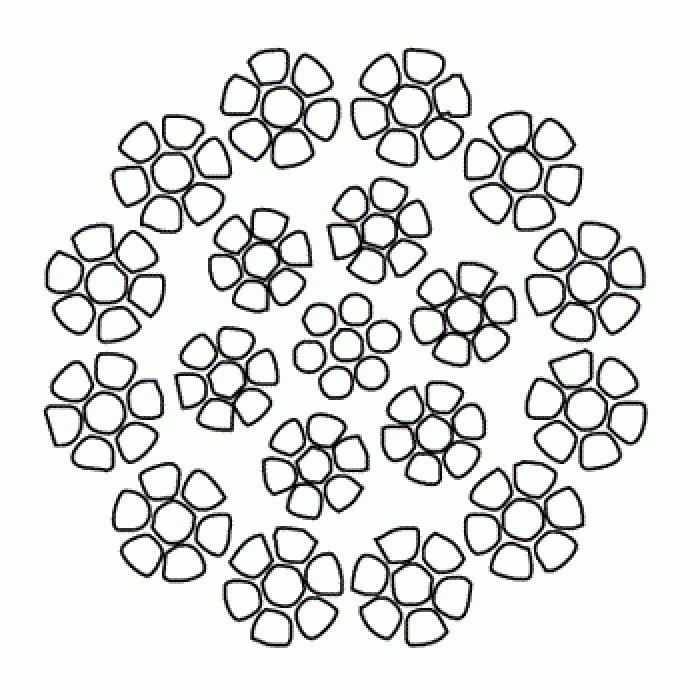

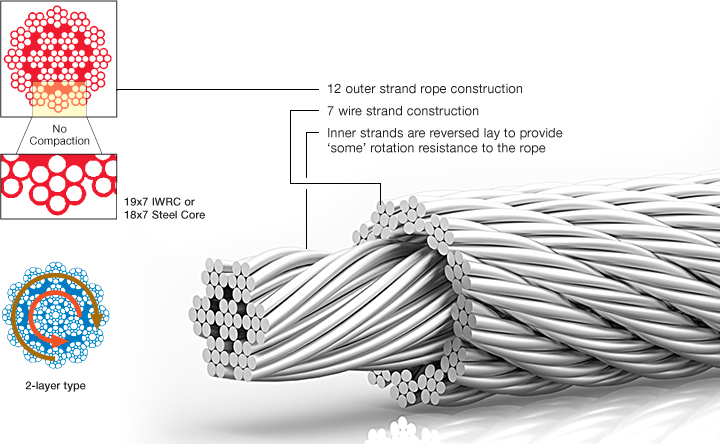

19XK7 WSC NON ROTATING ROPES
WIRE ROPE CHARACTERISTICS:
Advantage
In accordance with the EN 12385-4 standard.
Parameters
|
Diameter |
Approx. |
Tensile strength (MPa) |
||||||||||||
|
1570 |
1670 |
1770 |
1870 |
1960 |
2160 |
|||||||||
|
Minimum breaking load (kN) |
||||||||||||||
|
FC |
WC |
FC |
WC |
FC |
WC |
FC |
WC |
FC |
WC |
FC |
WC |
FC |
WC |
|
|
14 |
83.7 |
90.2 |
108 |
114 |
115 |
121 |
121 |
128 |
128 |
136 |
134 |
142 |
148 |
157 |
|
16 |
109 |
118 |
141 |
149 |
150 |
158 |
159 |
168 |
168 |
177 |
176 |
186 |
194 |
205 |
|
18 |
138 |
149 |
178 |
188 |
189 |
200 |
201 |
212 |
212 |
224 |
222 |
235 |
245 |
259 |
|
20 |
171 |
184 |
220 |
232 |
234 |
247 |
248 |
262 |
262 |
277 |
274 |
290 |
302 |
320 |
|
22 |
207 |
223 |
266 |
281 |
283 |
299 |
300 |
317 |
317 |
335 |
332 |
351 |
366 |
387 |
|
24 |
246 |
265 |
317 |
335 |
337 |
356 |
357 |
377 |
377 |
399 |
395 |
418 |
436 |
460 |
|
26 |
289 |
311 |
371 |
393 |
395 |
418 |
419 |
443 |
442 |
468 |
464 |
490 |
511 |
540 |
|
28 |
335 |
361 |
431 |
455 |
458 |
484 |
486 |
513 |
513 |
542 |
538 |
569 |
593 |
627 |
|
30 |
384 |
414 |
495 |
523 |
526 |
556 |
558 |
589 |
589 |
623 |
617 |
653 |
680 |
719 |
|
32 |
437 |
471 |
563 |
595 |
599 |
633 |
634 |
671 |
670 |
709 |
702 |
743 |
774 |
818 |
|
34 |
494 |
532 |
635 |
672 |
676 |
714 |
716 |
757 |
757 |
800 |
793 |
838 |
874 |
924 |
|
36 |
553 |
596 |
712 |
753 |
758 |
801 |
803 |
849 |
848 |
897 |
889 |
940 |
980 |
1040 |
|
38 |
617 |
664 |
793 |
839 |
844 |
892 |
895 |
946 |
945 |
999 |
991 |
1050 |
1090 |
1150 |
|
40 |
683 |
736 |
879 |
929 |
935 |
989 |
991 |
1050 |
1050 |
1110 |
1100 |
1160 |
1210 |
1280 |
|
42 |
753 |
811 |
969 |
1020 |
1030 |
1090 |
1090 |
1160 |
1150 |
1220 |
1210 |
1280 |
1330 |
1410 |
