Compacted Strand Wire Rope

18×K7、18×K19 Compacted Strand Wire Rope

Tensile strength:1570-2160mpa
Diameter:3-260mm
Certificate:ISO9001,CCS,ABS
Brand：Aulone
Product description: Abrasion resistance performance High breaking force Fatigue resistant performance Suitable for high-lifting working.
INQUIRY

Rope type:18XK7、18XK19

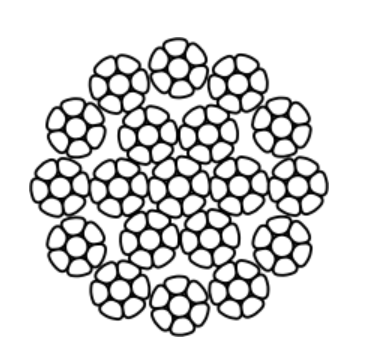

Rope Construction :18XK7-WSC、18XK7-FC、18XK19S-WSC、18XK19S-FC；

Features

Abrasion resistance performance;
High breaking force;
Fatigue resistant performance;
Suitable for high-lifting working.

These wire ropes are rotation resistant thanks to their two layers of wires in opposite directions, reducing the rotation torque.
The compacted wires provide increased tensile strength and resistance to abrasion.
Not suitable for working with swivels.
In accordance with the EN 12385-4 standard.

This compacted wire rope construction is available in both galvanized and ungalvanized finish with either ordinary or langs lay. The construction family includes 17X7, 18X7 and 19X7. For further flexibility and other performance characteristics we also supply 35X7, 34X7 and 24X7.

Application: They can be used in mobile crane, vessel crane, tower crane, cantilever crane, bridge crane, pile driver, hoisting rope for rotary drilling rig. It is applicable to the condition which can free rotation on one side and deep hoisting height.

Parameters

Diameter (mm)	Approx. weight (kg/100m)		Tensile strength (MPa)
			1570		1670		1770		1870		1960		2160
			Minimum breaking load (kN)
	FC	WC	FC	WC	FC	WC	FC	WC	FC	WC	FC	WC	FC	WC
14	83.7	90.2	108	114	115	121	121	128	128	136	134	142	148	157
16	109	118	141	149	150	158	159	168	168	177	176	186	194	205
18	138	149	178	188	189	200	201	212	212	224	222	235	245	259
20	171	184	220	232	234	247	248	262	262	277	274	290	302	320
22	207	223	266	281	283	299	300	317	317	335	332	351	366	387
24	246	265	317	335	337	356	357	377	377	399	395	418	436	460
26	289	311	371	393	395	418	419	443	442	468	464	490	511	540
28	335	361	431	455	458	484	486	513	513	542	538	569	593	627
30	384	414	495	523	526	556	558	589	589	623	617	653	680	719
32	437	471	563	595	599	633	634	671	670	709	702	743	774	818
34	494	532	635	672	676	714	716	757	757	800	793	838	874	924
36	553	596	712	753	758	801	803	849	848	897	889	940	980	1040
38	617	664	793	839	844	892	895	946	945	999	991	1050	1090	1150
40	683	736	879	929	935	989	991	1050	1050	1110	1100	1160	1210	1280
42	753	811	969	1020	1030	1090	1090	1160	1150	1220	1210	1280	1330	1410
