Compacted Strand Wire Rope

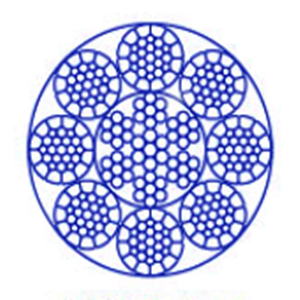

8XK26WS-IWRC Flex

Tensile strength:1570-2160mpa
Diameter:3-260mm
Certificate:ISO9001,CCS,ABS
Brand：Aulone
Product description: Good bending fatigue performance Very ﬂexible rope construction Smooth profle created by the number of outer strands Suitable for high-lifting working.
INQUIRY

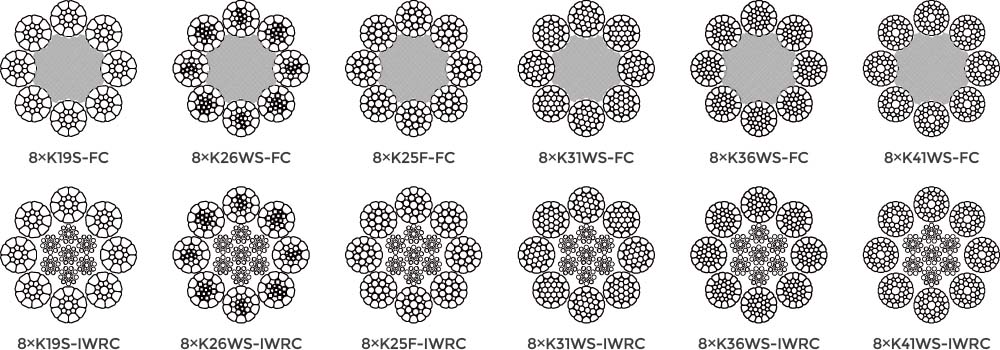

Rope series :8×K19S, 8×K26WS, 8×K31WS, 8×K36WS, 8×K41WS

Features

Good bending fatigue performance
Very ﬂexible rope construction
Smooth profle created by the number of outer strands
Suitable for high-lifting working.

Application: They can be used as Variable amplitude rope on mobile crane, vessel crane and grab bucket crane. And can be used as hoisting rope on container crane, floating crane, portal crane and steel factory crane etc... Also be applicable to multi-multiplying power system with smaller hoisting height, double coiling block system with matched left-hand and right-hand pairs using for deep hoisting height.

High performance compacted single layer constructed rope with 8 outer strands.
The compacted exterior wires make for a larger metal section, and increased resistance to abrasion and crushing.
In accordance with the EN 12385-4 standard.
Different constructions depending on the diameter.
Core:IWRC,Independent Wire Rope Core
Grade:1770mpa,1960mpa,2160mpa
Lay: sZ,zS,zZ,sS

parameters

Diameter (mm)	Approx. weight (kg/100m)	Tensile strength (MPa)
		1770	1960	2160
		Minimum breaking load (kN)
10	48.0	76.8	85.1	93.7
11	58.1	92.9	103	113
12	69.1	111	122	135
13	81.1	130	144	158
14	94.1	151	167	184
15	108	173	191	211
16	123	197	218	240
17	139	222	246	271
18	156	249	276	304
19	173	277	307	338
20	192	307	340	375
21	212	339	375	413
22	232	372	412	454
23	254	406	450	496
24	276	442	490	540
25	300	480	532	586
26	324	519	575	634
27	350	560	620	683
28	376	602	667	735
29	404	646	715	788
30	432	691	766	844
32	492	787	871	960
34	555	888	983	1080
36	622	1000	1100	1210
38	693	1110	1230	1350
40	768	1230	1360	1500
42	847	1360	1500	1650
44	929	1490	1650	1810
46	1020	1630	1800	1980
48	1110	1770	1960	2160
50	1200	1920	2130	2340
52	1300	2080	2300	2530
54	1400	2240	2480	2730
56	1510	2410	2670	2940
58	1610	2580	2860	3150
60	1730	2770.00	3060	3370
