Compacted Strand Wire Rope

8xK26WS-PWRC(K) series

Tensile strength:1570-2160mpa
Diameter:3-260mm
Certificate:ISO9001,CCS,ABS
Brand：Aulone
Product description: Abrasion resistance performance. High breaking force. Fatigue resistant performance Suitable for high-lifting working
INQUIRY

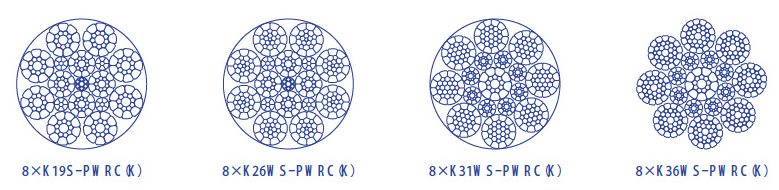

Rope series: 8XK19S-PWRC(K)、8XK26WS-PWRC(K)、8XK31WS-PWRC(K)、8XK36WS-PWRC(K)
Features

Abrasion resistance performance.
High breaking force.
Fatigue resistant performance
Suitable for high-lifting working

Application: They can be used as rigging for tower crane, mobile crane, grab bucket crane, cantilever crane, suitable for motionless and high breaking load required steel wire rope.

Standard: GB/T 8918. EN12385 available.

Parameters

Diameter (mm)	Approx. weight (kg/100m)	Tensile strength (MPa)
		1670	1770	1870	1960	2160
		Minimum breaking load(kN)
12	71.3	111	117	124	130	143
13	83.7	130	138	145	152	168
14	97.0	151	160	169	177	195
15	111	173	183	194	203	224
16	127	197	208	220	231	254
17	143	222	235	249	261	287
18	160	249	264	279	292	322
19	179	277	294	311	325	359
20	198	307	326	344	361	397
21	218	339	359	379	398	438
22	240	372	394	416	436	481
23	262	406	431	455	477	526
24	285	442	469	495	519	572
25	309	480	509	538	564	621
26	335	519	550	581	609	672
27	361	560	594	627	657	724
28	388	602	638	674	707	779
29	416	646	685	723	758	836
30	446	691	733	774	811	894
