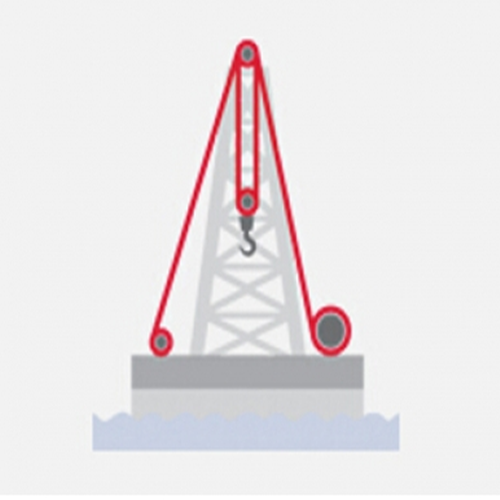

Drill line

Oil And Gas Wire Rope

Products standards
API 9A Rope Specification is the first choice of product standards for steel wire rope.

Other standards are as following:GB8918 Important Uses Rope, GB / T 20118 General Purpose Wire Rope, GB/T200 Large Diameter Wire Rope, YB / T 5359 Compacted Strand Rope. Q/SY1285 is a common product standards. We can execute other product standards or do as your requirements.

Main purpose: Drilling line,Workover line,Swabbing line,Sand line,Wire rope for pumping unit, Wire rope for offshore platform.

• Typical construction: 6x19S-IWRC,6x21S-IWRC,6x26WS-IWRC.
• Wire rope for oil drilling: stable structure, excellent anti-abrasion, anti-extrusion.
• Specification range: D29-48mm 6x19S(≤ 38mm), 6x26WS(≥38mm).


Typical construction: 6xK26WS-IWRC,6xK19S-IWRC(FC),6xK25F-IWRC(FC),6xK31WS-IWRC,6xK36WS-IWRC(FC),6xK41WS-IWRC(FC).
This kind of wire rope has higher tensile strength and better performance:smooth surface and larger contact area to reduce abrasion between polleys and reel, shoeing excellent abrasion resistance and anti-crush, thus the ropes can work in rigorous environments.
Specification range: D22 - 48mm.

Typical construction: EP6x19S-IWRC,6xK31WS-EPIWRC,EP6x26WS-IWRC.
High pressure inject the plastic polymer to form a cushion between strand and strand,distribute internal pressure;polymer can seal lubricant to keep the rope internal lubrication to prevent external impurities and dirt into wire rope;steel core filled plastic polymer to reduce internal abrasion and distribute internal pressure;plastic polymer has a stable performance and do not soften or melt under the normal operation temperature and provide excellent abrasion resistance and anti-crush for the sake of being used in rigorous.
Conditions Specification range: D26-60mm.
