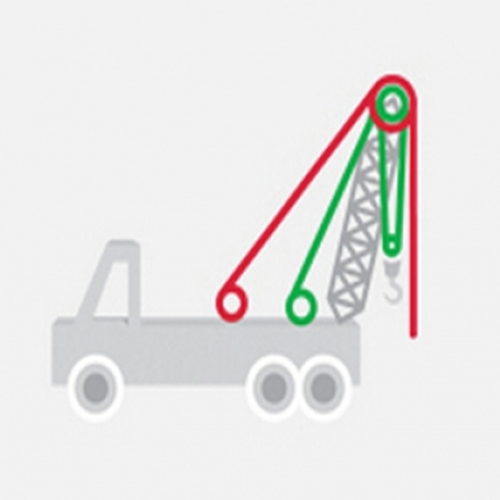

Wire rope for workover

Wire rope for workover

Oilfiled wire rope description

• Products standards

API 9A Rope Specification is the first choice of product standards for steel wire rope.

Other standards are as following:GB8918 Important Uses Rope,GB/T 20118 General Purpose Wire Rope,GB/T200 Large Diameter Wire Rope,YB/T5359 Compacted Strand Rope.Q/SY1285 is a common product standards.We can execute other product standards or do as your requirements.

Main purpose: Drilling line,Workover line,Swabbing line,Sand line,Wire rope for pumping unit, Wire rope for offshore platform.

• Typical construction: 6x 19S-IWRC , 6x26WS-IWRC.
• This kind of wire rope has excellent anti-crush and abrasion resistance performance to adapt to the rigorous working condition of tubing line, service life and performance can be improved through impregnated plastic polymer or plastic coating.
• Specification range: D19-26mm.

• Typical construction:K6 x26WS-IWRC.
• This kind wire rope improves fill factor of wire rope and increases tensile strength with smooth surface and lager contact area having excellent anti-crush and anti-abrasion quality by rotating swage process.
• Specification range: D19-26mm.

• Typical construction: 6x19S- IWRC.
• Better anti-crush performance and good anti-abrasion performance suitable to be used as swabbing line in normal vertical oil well.
• Specification range: D13-19mm.

• This kind of wire rope improves fill factor and increases tension by rotary swaging process on the entire rope, with smooth surface and lager contact area to descend the abrasion between the rope and the pulley, drum and internal wall of oil well, so as to provide excellent anti-abrasion and anticrush performance to adapt the working condition of swabbing line in normal vertical oil well.
• Specification range: D13-19mm.

This kind of wire rope with special construction parameter not only has performance features of compacted wire rope but performance feature of anti-rotary wire rope, thus it is suitable for the rigorous working condition of bailing oil operation in inclined shaft and horizontal oil well.
Specification range: D13-19mm.

Sand Line

6x 7-FC this kind wire rope has excellent anti-abrasion performance to meet hard working condition of oil bailing sand operation.
Specification range: D13-19mm

Typical construction: K5x 7-FC,K6x 7-FC this kind of wire rope improves fill factor and increases tension by rotating forge process for the entire rope with smooth surface and lager contact area to descend wire rope abrasion among pulley, drum and internal wall of oil well to provide excellent antiabrasion and anti-crush performance to adapt rigorous working condition .
Specification range: D13-19mm.

Typical construction: 6x K7-FC, this kind of wire rope has higher tension and better performance with smooth surface and lager contact area to descend wire rope abrasion among pulley, drum and internal wall of oil well to provide excellent anti-abrasion and anti-crush performance to adapt rigorous working condition .
Specification range: D13-19mm.

Key words:Special wire rope manufacturer,non-rotation wire rope,compacted wire rope,PVC coated wire rope,Important usage wire rope manufacturer.

Warm prompt:all types wire rope can be do PVC coated+galvanized+compacted as costomers requirements.

Tensile strength:1770-2160mpa

Diameter:11-203mm

Certificate:API-9A,ISO14001,ISO9001,CCS,ABS
