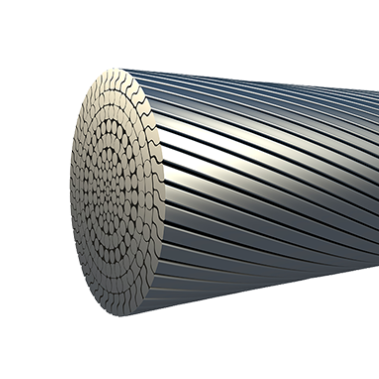

Full locked coil ropes

Full locked coil ropes are a unique assembly of a classic wire rope core consisting of multiple helically twisted wires, with on top of that on the outside one or more layers of profiled, z-shaped wires that interlock with each other. This interlocking outer layer creates a dense rope assembly, with high strength & stiffness, and an aesthetically pleasing smooth outer surface. The cable voids on the inside are filled with our proprietary AULONE blocking compound, which reduces the impact of steel-steel contact, and adds a further barrier against corrosion.

Advantages
1)High breaking load and stiffness owing to its high metallic fill factor
2)Aesthetic and smooth outer surface add grace to your design
3)Factory assembly & pre-stress shorten your installation time
4)Can be extruded with plastic when colour aesthetics or additional corrosion resistance is needed

Full Locked Coil ropes have a high metallic cross section - this guarantees a higher breaking load and elastic axial stiffness with a smaller/reduced diameter. The outer "Z"-shaped layers give the rope a smoother profile, which allows for better clamping. The locked external surface, the internal compound Tensofill and the zinc–aluminium alloy coating (Zn95Al5) of each external wire allow for a high corrosion protection - that can be further improved with special waxes and extruded or co-extruded HDPE sheathing with wide set of colors and finishings.

TECHNICAL INFO
Locked coil cable
Wire coating: Zn or Zn95Al5
Coating of cable: conventional or HDPE Sheathing; Tensocoat
Reference standards: EN 12385-4
