Compacted Strand Wire Rope

8XK26WS & 8xK36 Class

Tensile strength:1570-2160mpa
Diameter:3-260mm
Certificate:ISO9001,CCS,ABS
Brand：Aulone
Product description: Abrasion resistance performance. High breaking force Outstanding bending fatigue performance Very stable rope construction improved support of outer strands in service
INQUIRY

Rope series :8×K19S, 8×K26WS, 8×K31WS, 8×K36WS, 8×K41WS

Features

Abrasion resistance performance.
High breaking force
Outstanding bending fatigue performance
Very stable rope construction
improved support of outer strands in service

Application: They can be used as Variable amplitude rope on mobile crane, vessel crane and grab bucket crane. And can be used as hoisting rope on container crane, floating crane, portal crane and steel factory crane etc... Also be applicable to multi-multiplying power system with smaller hoisting height, double coiling block system with matched left-hand and right-hand pairs using for deep hoisting height.

Extremely flexible rope types with up to 288 single wires (8x36) in the outer strands. Better fatigue performance and fatigue life expectancy than 6x19/6x36. Due to the larger number of outer wires these ropes tend to be more sensitive to mechanical damages.

All 8-strand constructions require proper sheave- and drum groove dimensions. Undersized and/or worn sheaves will immediately result in rope deformations, waviness, or high strands. These ropes require extra care during installation (no reverse bend spooling).

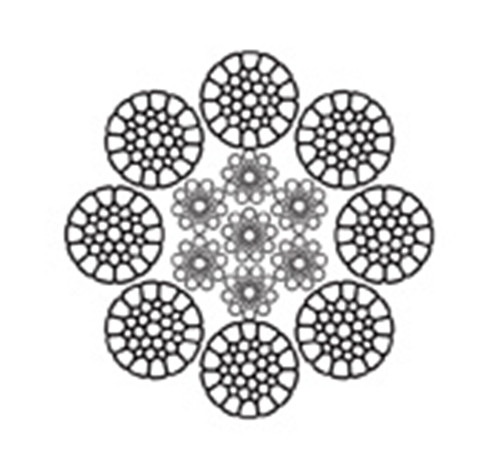

High performance compacted single layer constructed rope with 8 outer strands.
The compacted exterior wires make for a larger metal section, and increased resistance to abrasion and crushing.
In accordance with the EN 12385-4 standard.
Different constructions depending on the diameter.
Core:IWRC, Independent Wire Rope Core
Grade:1770mpa,1960mpa,2160mpa
Lay: sZ,zS,zZ,sS

Pamameters

Diameter (mm)	Approx. weight (kg/100m)		Tensile strength (MPa)
			1570		1670		1770		1870		1960		2160
			Minimum breaking load (kN)
	FC	WC	FC	WC	FC	WC	FC	WC	FC	WC	FC	WC	FC	WC
10	40.5	48.5	51.8	65.2	55.1	69.3	58.4	73.5	62	78	64.7	81.3	71.2	89.6
12	58.3	69.8	74.6	93.8	79.4	99.8	84.1	106	89	112	93.1	117	103	129
14	79.4	95.1	102	128	108	136	114	144	121	152	127	159	140	176
16	104	124	133	167	141	177	150	188	158	199	166	208	183	230
18	131	157	168	211	179	225	189	238	200	251	210	264	231	290
20	162	194	207	261	220	277	234	294	247	310	259	325	285	359
22	196	235	251	315	267	335	283	356	299	376	313	394	345	434
24	233	279	298	375	317	399	336	423	355	447	373	469	411	516
26	274	328	350	440	373	469	395	497	417	525	437	550	482	606
28	318	380	406	511	432	543	458	576	484	608	507	638	559	703
30	364	437	466	586	496	624	526	661	555	698	582	732	642	807
32	415	497	531	667	564	710	598	752	632	795	662	833	730	918
34	468	561	599	753	637	801	675	849	713	897	748	940	824	1040
36	525	629	671	844	714	898	757	952	800	1010	838	1050	924	1160
38	585	700	748	941	796	1000	843	1060	891	1120	934	1170	1030	1290
