Cable Stayed bridge wire rope

Spiral strand ropes

Standard:EN 12385-10, ASTM A586
Wire coating: heavy galvanised (A, AB,B) or Zn 95AI5
Product description: Spiral strand ropes A spiral strand is a composite of multiple layers of helically twisted steel wires. Layers are spun in opposite directions providing constructional and torque stability. The use
INQUIRY

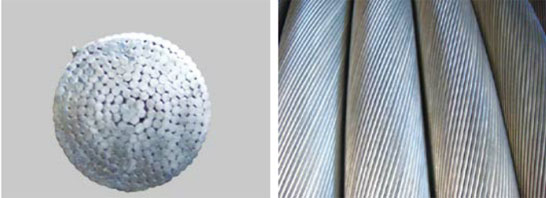

A spiral strand is a composite of multiple layers of helically twisted steel wires. Layers are spun in opposite directions providing constructional and torque stability. The use of high strength steel wires makes it a good candidate as tension member in static applications. Our proprietary Aulone blocking compound fills the cable on the inside, reducing the impact of steel-steel contact, and adding an additional barrier against corrosion.

Features

High aixal stiffness
Excellence Corrosion-resistant duo to Galfan( composed of 95% Zinc and 5% aluminum)
High breaking force because of high strength wires
Good clamping capabilities
Torque balanced due to cross laying
High fatigue resistance
Multiple layers
Parallel contact core
Increased fatigue resistance
Reduces contact stress
Excellent corrosion resistance
Galfan
Galvanized

19-37-61-91-127-169 wires steel rope,1670 N/mm2,suitable per tensostructure,bracings,suspension bridge, cable stayed bridge and structures stability.

Applications

Main cables
Wind or suspender cables
Tower guys
Roof structures
Hand ropes
Stay cables
Hanger cables
Edge cables

1X19

1X37

1X61

1X91

1X127

1X169

Standard: EN 12385-10 (metric) and ASTM A586 (imperial) galvanized structural strand.

Use this product where high strength and high modulus is required in a stationary structure or application.

Wire coating: heavy galvanised (A, AB,B) or Zn 95AI5

Conventional or plastic HDPE sheathing
Reference standards: in accordance to major international standards and class society rules (DNV, ABS, LRS, etc.)
