Rubber rope

Product description: Introduction to rubber flat balance steel wire rope Rubber -protective balance steel wire rope is mainly used in European mines, and also for some Czech Republic, Russia, Ukraine and Germany. In add
INQUIRY

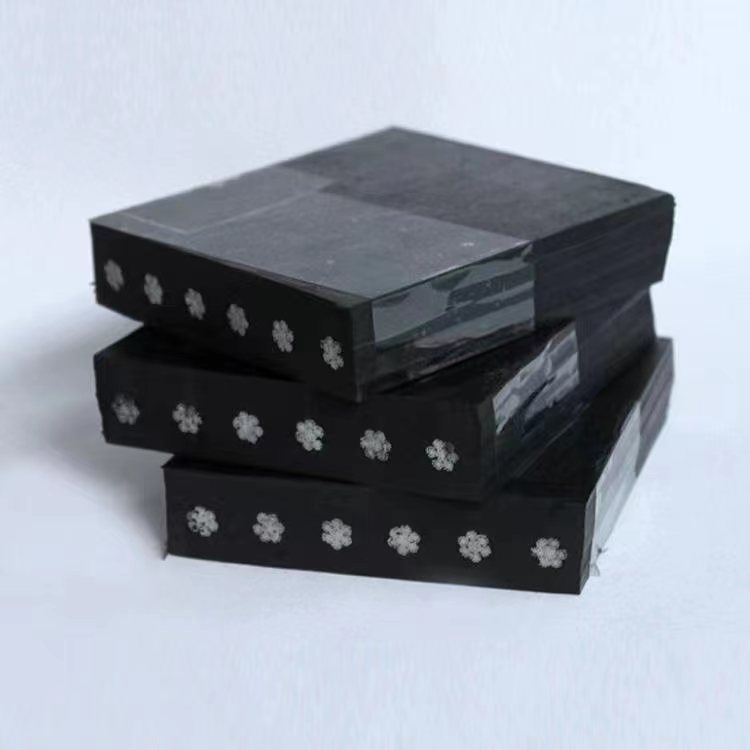

Introduction to rubber flat balance steel wire rope

Rubber balance steel wire rope is mainly used in European mines, and also for some Czech Republic, Russia, Ukraine and Germany. In addition, the rubber -protection balance rope is also used to mining coal, salt, copper, iron ore, zinc, lead and nickel.

Parameters

Description	Minimal guaranteed breaking force Fmin [kN] for the Rr strength class
Description	Rr 1370 N/mm2	Rr 1570 N/mm2	Rr 1670 N/mm2
PARAMETERS OF ELEMENTS WITH ROPES Ø 12
Scope: from min. 2,5 – 60 × 22/2 × 12	158	183	193
to max. 4,0 – 105 × 22/2 × 12	158	183	193
PARAMETERS OF ELEMENTS WITH ROPES Ø 14
Scope: from min. 3,2 – 60 × 29/2 × 14	224	250	274
to max. 13,5 – 212 × 35/8 × 14	896	1000	1000
PARAMETERS OF ELEMENTS WITH ROPES Ø 16
Scope: from min. 4,1 – 60 × 29/2 × 16	300	344	365
to max. 17,3 – 212 × 35/8 × 16	1200	1376	1460
PARAMETERS OF ELEMENTS WITH ROPES Ø 18
Scope: from min. 4,5 – 60 × 29/2 × 18	366	419	446
to max. 19,0 – 212 × 35/8 × 18	1464	1679	1784
PARAMETERS OF ELEMENTS WITH ROPES Ø 20
Scope: from min. 13,2 – 170 × 35/4 × 20	858	984	1046
to max. 17,8 – 212 × 35/6 × 20	1287	1476	1569
PARAMETERS OF ELEMENTS WITH ROPES Ø 22
Scope: from min. 14,8 – 170 × 35/4 × 22	1138	1302	1387
to max. 20,5 – 212 × 35/6 × 22	1707	1953	2080
PARAMETERS OF ELEMENTS WITH ROPES Ø 24
Scope: from min. 15,5 – 140 × 35/4 × 24	1348	1494	1643
to max. 22,3 – 212 × 35/6 × 24	2017	2242	2460
PARAMETERS OF ELEMENTS WITH ROPES Ø 4,2	Minimal guaranteed rope breaking force min [kN] for strength class 1770 N/mm2
Scope: from min 0,5 – 30×10/2×4,2	22,6
to max. SAG 2-102X10/8X4,2	90,4

The advantage of rubber flat balance steel rope
1. High operational reliability and safety
2. Compared with the flat steel wire rope and round steel wire rope, the life span is longer
3. Magnetic non -destructive detection can be used
4. Effective resistance to corrosion, especially corrosive mine environment
5. No need to lubricate regularly
6. During the use process, there is no mineral powder and other debris that are bonded on the surface of the mining steel wire rope, and the weight of the wire rope is kept constant.
7. Have no rotation performance
8. Low elastic extension rate (high extension coefficient)
9. Compared with the flat steel wire rope and staff steel wire rope, fatigue resistance is stronger
10. At the bottom of the bottom of the mine, the naturally bending radius is small
11. The rubber surface of the rubber flat balance steel rope can be repaired
Under the conditions of frequent maintenance and replacement of wire rope caused by some severe corrosion of dry corrosion, the rubber flat steel wire rope -type steel wire rope shows the than the wire rope
Stronger corrosion resistance.

The history of rubber flat balance steel wire rope:
The rubber -protective steel wire rope originated in 1975, when the attempts of such structural steel ropes were started. Its main inspiration comes from dry rubber steel wire conveyor belt. After repeated experiments and continuously summarizes experience, it is the first to be put into use in Europe, Ukraine, Belarus and other countries.
The rubber flat balanced steel wire rope structure was to solve the problems existing in the existing vertical conveying system at that time, especially:
1. Make sure the corrosion resistance of the balance rope
2. Improve work safety
3. Reduce the traditional balance rope frequent, complex and cost -high replacement
4. Reduce the cost by extending life
5. Make a magnetic head to ensure that the condition of the rubber protection steel wire rope can be controlled in the mine
6. Righteousness of maintenance and service

Compatible services and tests of rubber flat balance steel wire rope
The compatibility of the rubber flat balance steel wire rope and ordinary flat steel rope:
The fixed wedge -shaped fixture of the rubber flat -type steel wire rope and the ordinary flat steel rope is completely compatible. If the round -stock balance rope needs to be replaced with a rubber flat balanced steel wire rope, it is not necessary to transform the existing fixture.
The service of the rubber flat balance steel wire rope:
The rubber coverage layer of the rubber flat -type steel wire rope ensures that the steel wire rope still has effective corrosion resistance under the condition of corrosive ore. In the mine, the mechanical damage of each rubber protective layer can be repaired.
Through the device developed and recognized by itself, Olong provides lifelong clothes for the rubber flat balanced steel wire rope used by the mine
We have rich service experience and can ensure the highest quality and fast repair.

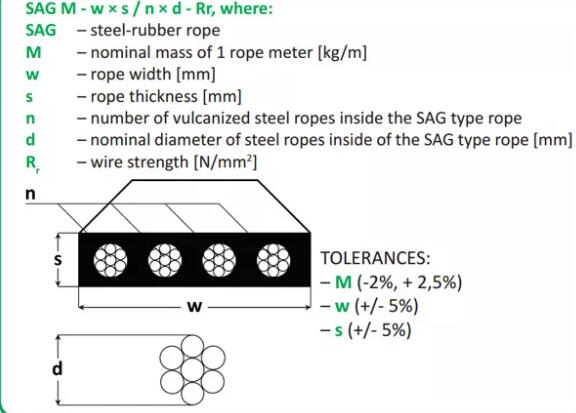

Parameters of rubber flat balance steel wire rope
Name rubber protective steel wire rope
Micoly (KG/M)
Wiring Width (MM)
The thickness of S wire rope (mm)
How many sulfide wire ropes are there in N steel wire rope
Distech of the steel rope in D steel rope (MM)
The intensity of RR wire rope (n/mm2)
FE.C.MIN wire rope Trouble (KN)
A metal cross -sectional area (MM2)
Formation of F MIN wire rope (KN)

F min = 0.82 xfe.c.min
Tolerance: M (-2%, +2.5%)
W (+/- 5%)
S (+/- 5%)
