Rotary Drilling Rig Wire Rope

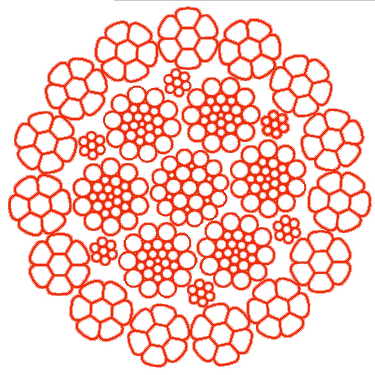

15XK7 Flex non rotating wire rope

Tensile strength:1570-2160mpa
Diameter:3-203mm
Certificate:ISO9001,CCS,ABS
Brand：Aulone
Product description: Compacted strand Non-rotation Bigger metal fill factor mooth surface Excellent anti-abrasion Anti-extrusion,anti-rotation Good anti-fatigue Flexible performance
INQUIRY

Features

Compacted strand;
Non-rotation;
Bigger metal fill factor;
mooth surface;
Excellent anti-abrasion;

Anti-extrusion,anti-rotation;
Good anti-fatigue;
Flexible performance

APPLICATION
Hoisting rope for tower crane, mobile crane, dynamic compaction machine, harbor machinery etc.

PRODUCT VARIANTS
Standard: GB/T 8918, EN 12385.

Technical Parameters

Diameter (mm)	Approx. weight (kg/100m)	Tensile strength (MPa)
		1670	1770	1870	1960	2160
		Minimum breaking load (kN)
12	69.1	106	112	118	124	137
13	81.1	124	132	139	146	161
14	94.1	144	153	161	169	186
15	108	165	175	185	194	214
16	123	188	199	211	221	243
17	139	212	225	238	249	275
18	156	238	252	267	279	308
19	173	265	281	297	311	343
20	192	294	312	329	345	380
21	212	324	343	363	380	419
22	232	356	377	398	417	460
23	254	389	412	435	456	503
24	276	423	449	474	497	547
25	300	459	487	514	539	594
26	324	497	526	556	583	642
27	350	536	568	600	629	693
28	376	576	611	645	676	745
29	404	618	655	692	725	799
30	432	661	701	741	776	855
32	492	752	797	843	883	973
34	555	849	900	951	997	1099
36	622	952	1009	1066	1118	1232
38	693	1061	1125	1188	1245	1372
40	768	1176	1246	1316	1380	1521

If you're considering non-rotating wire ropes for industrial use, ensuring the rope meets necessary certifications (e.g., EN12385-4) and high-quality manufacturing standards will help maximize durability and operational safety.
