Rotary Drilling Rig Wire Rope

Tensile strength:1770-2160mpa
Diameter:11-203mm
Certificate:ISO9001,CCS,ABS
Brand:Aulone
Product description: Rotary drilling rigs are used in multiple ways in special deep foundation engineering. High cost effectiveness, reliable quality, ease of servicing, high safety standards and a long service life are t
INQUIRY

FOUNDATION WORKS
Range of drilling, piling and auger rigs for building foundations.

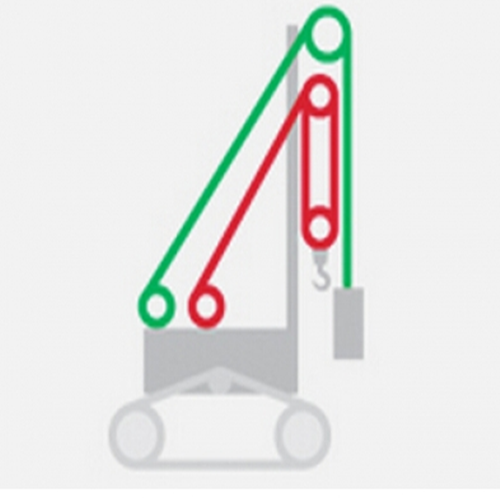

MAIN WINCH
The main winch ropes are utilised to suspend the load and are typically of a low rotational multi strand construction this demanding application and environment not only subjects the ropes to high levels of fatigue and wear but also in some instances shock loading.

SERVICE WINCH
The service winch ropes are utilised to suspend the load and are typically of a low rotation multi strand construction this demanding application and environment not only subjects the wire ropes to high levels of fatigue and wear but also in some instances shock loading.

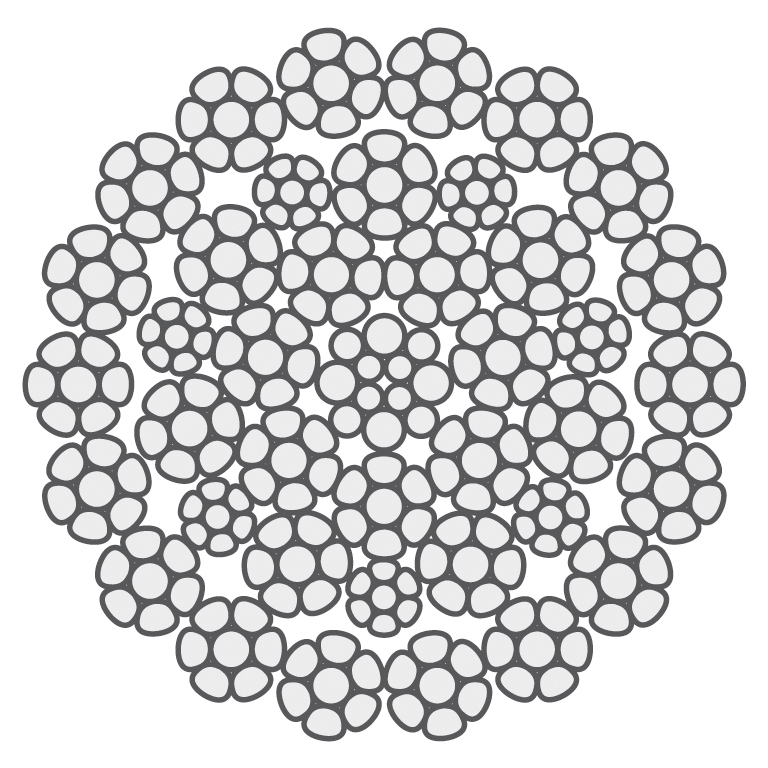

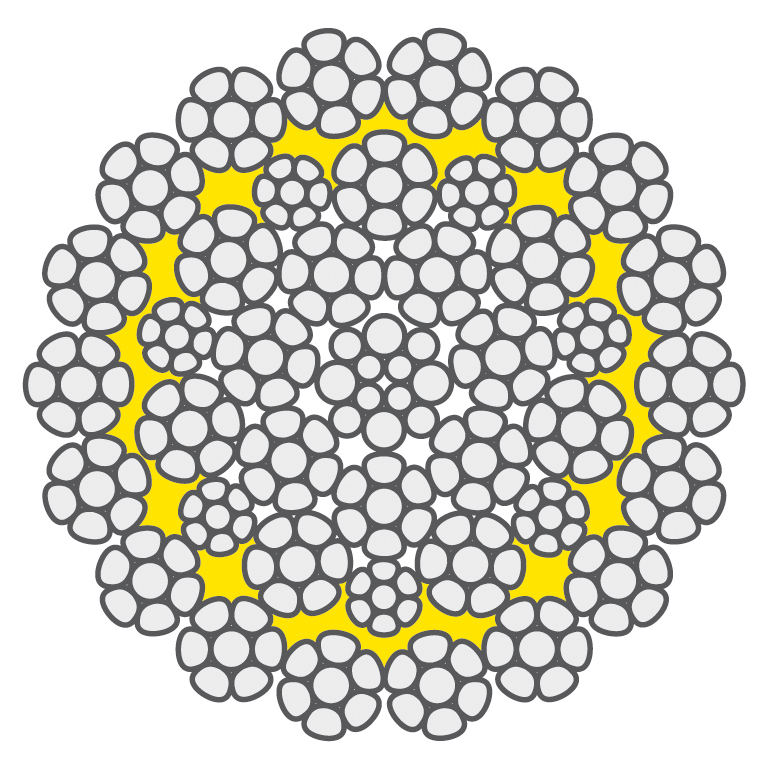

At present, there are many wire rope structures used in rotary drilling rigs in the market. Ordinary round-strand rotation resistance wire ropes mainly include 18×7, 24W×7, and 35W×7; compacted strand rotation resistance wire ropes mainly include 18×K7. , 35W×K7, 15×K7 etc.

In recent years, 35W×K7 type and 15×K7 type steel wire ropes have been applied to rotary drilling rig in relatively large quantities, especially these two types of RHLL & LHLL wire ropes are widely used in the market, accounting for more than 50% .

Rotary drilling rigs are used in many ways in special deep foundation works. High cost-effectiveness, reliable quality, easy maintenance, high safety standards and long service life are specific requirements for rotary drilling rigs. These high demands must also be met by the wire ropes of the application - Aulone is ready to take on the challenge with its high performance wire ropes. From the selection of development and production technology to the actual use by customers, the expert team of Aulone is focused on one objective only: to find the optimum economical and technical rope solution to be installed in the rotary drilling rig.

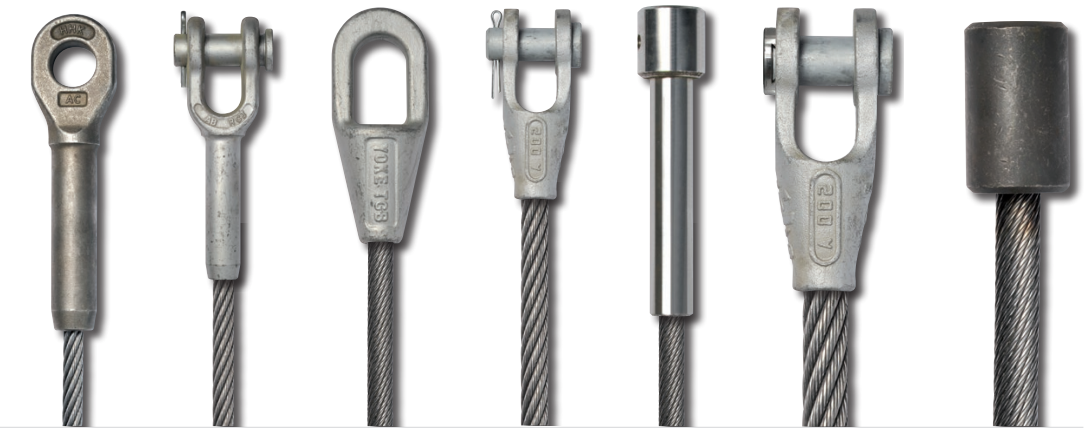

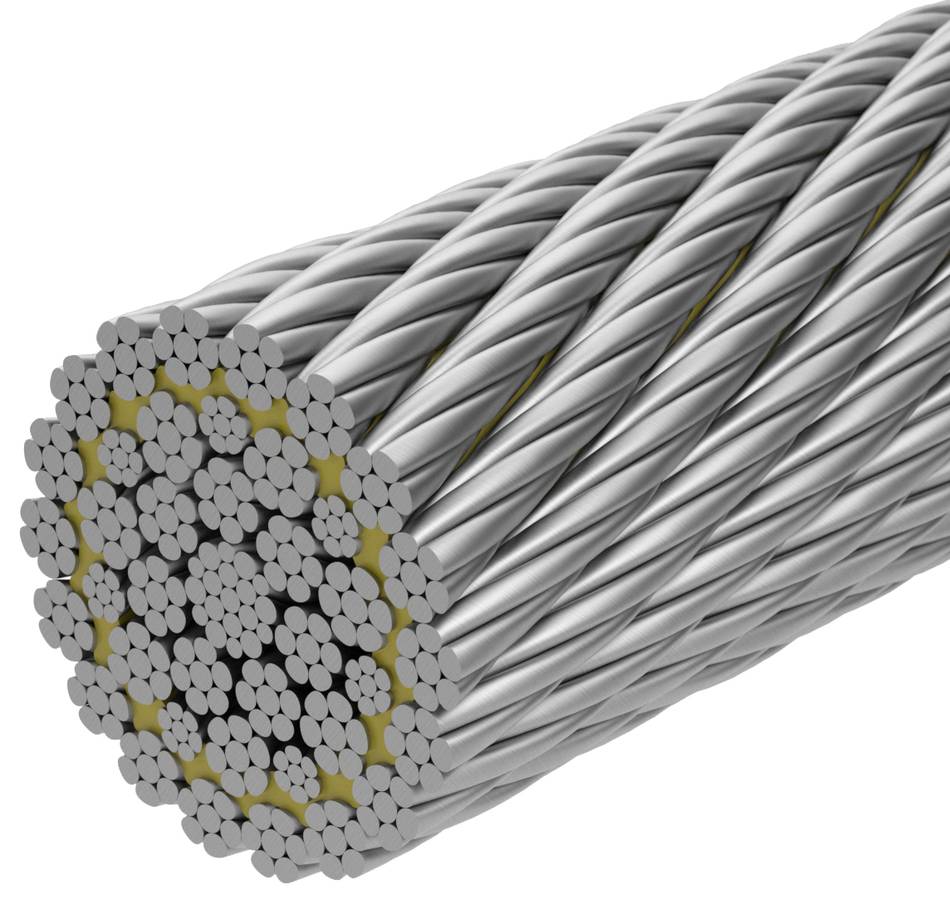

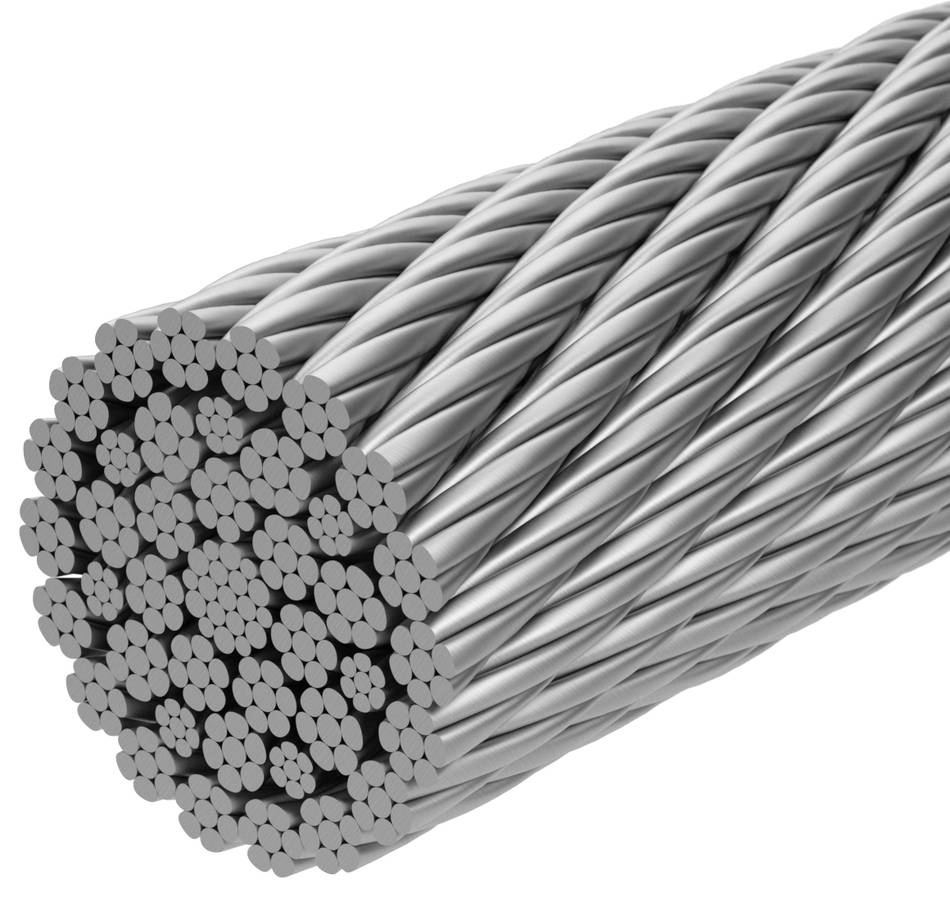

Aulone offers a broad product range of non-rotation resistant compacted high performance steel wire ropes for rotary drilling rigs. The 35WXK7 & 15XK7, 18XK7 non rotating, 6 strand, 8 strand and compacted steel wire ropes with extremely high load carrying capacity and flexibility are successfully used on various machines. As a matter of course, customization with tested rope end terminations such as button sockets for commercially available pouch sockets, as well as testing and acceptance certificates are part of our overall solutions.
